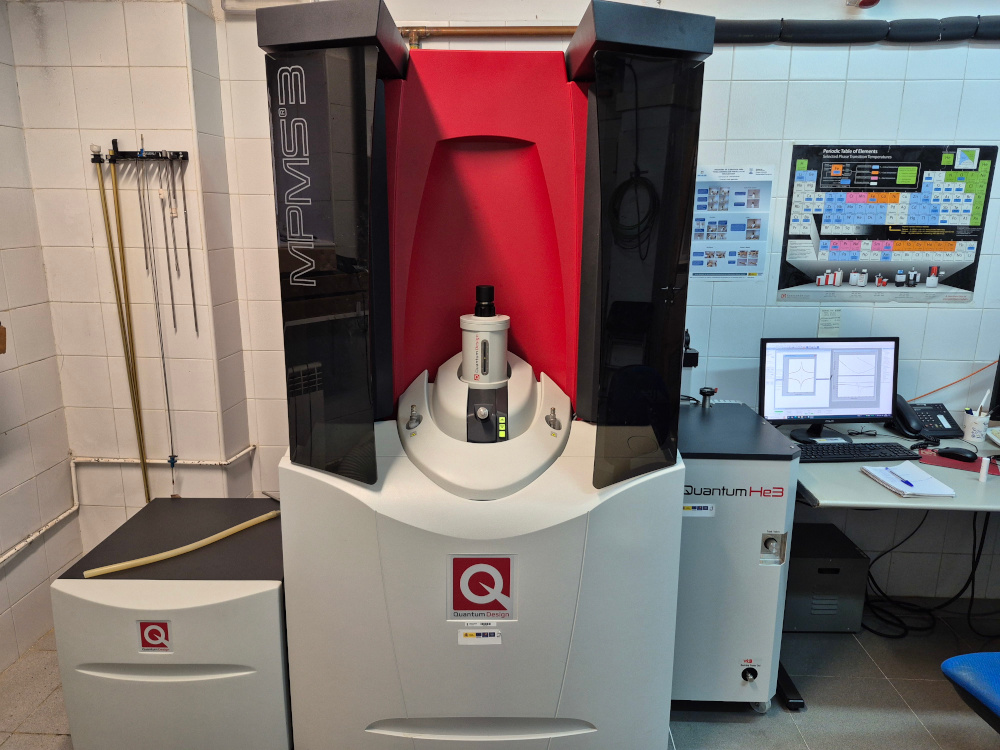

The MPMS3 offers users the sensitivity of a SQUID (superconducting quantum interference device) magnetometer and the possibility of choosing between multiple measurement modes (DC mode, VSM and AC susceptibility)
The equipment basically consists of a temperature control system (1.9 K – 400 K) and a superconducting coil to apply an external field of ±7 Tesla
The system allows control of all parameters during the measurement process
We have external equipment, the He_3 refrigerator, with which we can control the temperature from 0.4 K
Temperature range
1.8 K – 400 K
Rate máx: 50 K/min
Applied field range
0 a ± 70 kOe
Rate: 4 Oe/seg a 700 Oe/seg
Sensitivity 1x10-8 emu
Available options
VSM, DC magnetic measurements and AC susceptibility
Horizontal rotator (in-plane, out-of-plane)
Fibre optic sample holder (FOSH) with adjustable UV-IR light source
